Disco Duro Seagate ST-225 y controladora MFM
Prende y reconoce el disco, al utilizar Fdisk no logra crear particiones, hay que realizar un mantenimiento mas profundo.

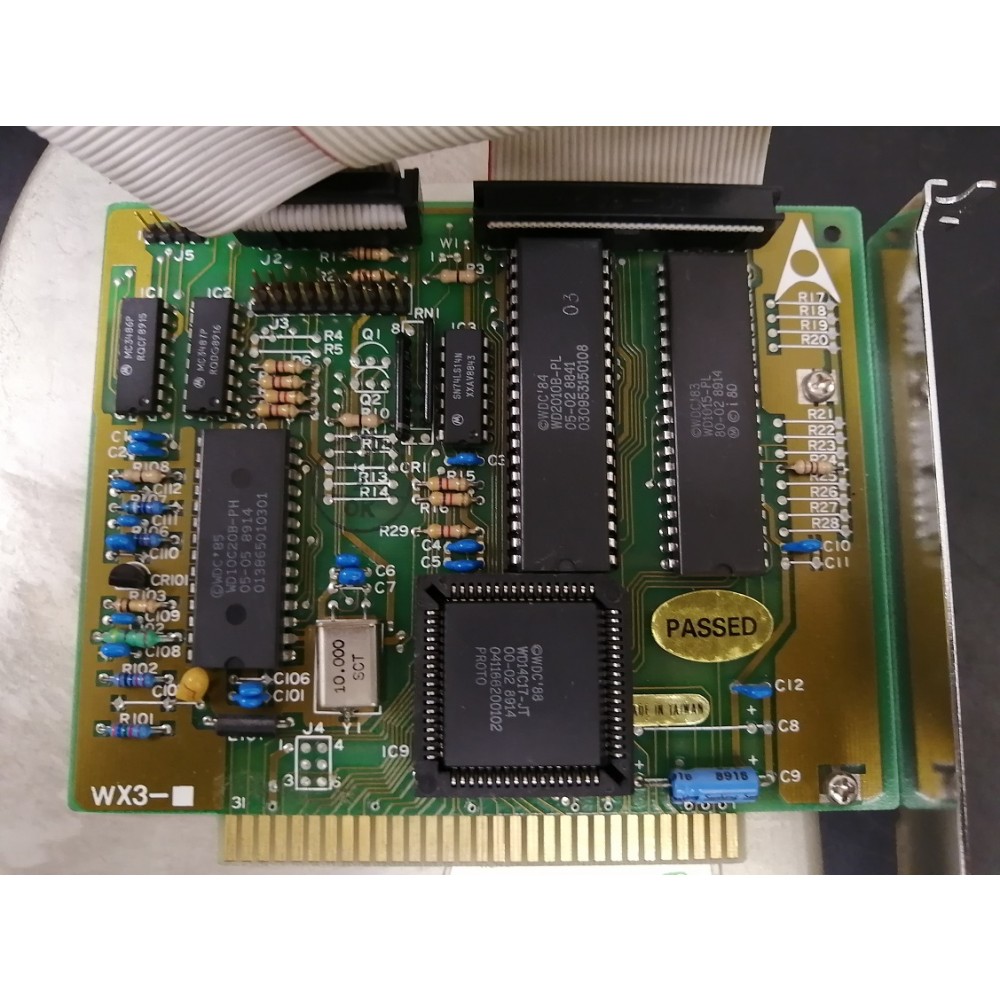

Incluye Controladora MFM WX3 y cables, funcionando.
Ideal para entendidos.
Native| Translation |
------+-----+-----+----- |
Form 5.25"/HH Cylinders 615| | | |
Capacity form/unform 21/ 26 MB Heads 4| | | |
Seek time / track 65.0/20.0 ms Sector/track 17| | | |
Controller MFM / ST412 Precompensation 300 |
Cache/Buffer KB Landing Zone 670 |
Data transfer rate 0.625 MB/S int Bytes/Sector 512 |
0.625 MB/S ext |
Recording method MFM operating | non-operating |
-------------+-------------- |
Supply voltage 5/12 V Temperature *C 10 45 | -40 60 |
Power: sleep W Humidity % 8 80 | 5 90 |
standby 14.8 W Altitude km -0.305 3.048| -0.305 9.140 |
idle W Shock g 10 | 40 |
seek W Rotation RPM 3600 |
read/write 33.0 W Acoustic dBA |
spin-up W ECC Bit |
MTBF h 100000 |
Warranty Month |
Lift/Lock/Park NO Certificates CSA,TUV,UL478,VDE |
